| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Make | CBRO |
| Model | DTT200S |
| Click to view more | |
Product Details
Measuring
Gas or Liquids Compatible to stainless Steel
Temperature Ranges
Thermocouple: E,K,S,B Thermal resistor: PT100,Cu50
Insert Depth
50mm~2000mm(as customer’s request)
Accuracy
Thermal resistor:0.5%FS(standard);thermocouple: 0.75%FS
Output Signal
4~20mA
Long-Term Stability
<0.25%FS/year
Supply Voltage
24V±10% DC
Load Resistance
RL(max.) =(V-12)/0.02, V:power supply of transmitter
Insulation Resistance
100MΩ@50VDC
Ambient Temperature Range
-30~+80℃
Display
LCD or LED
Temperature Coefficient of Zero
0.2%FS/10℃
Temperature Coefficient of Span
0.2%FS/10℃
Process Connection
G1/2 or others
Electrical Connection
M20×1.5 (female)
Maximum Pressure
10MPa
Protection
IP65

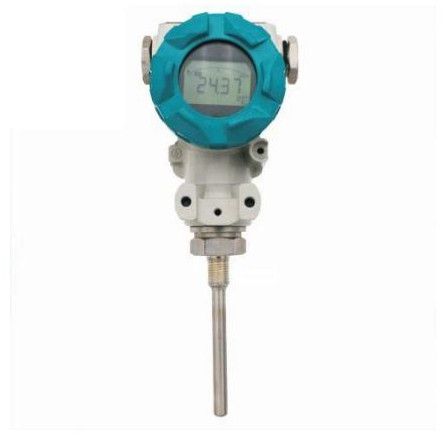

4-20mA Temperature Transmitter
MODEL: DTT200S
DTT200S integrated 4-20mA temperature transmitter thermocouple or thermal resistor as temperature sensitive element, it can measure temperature of all kinds of liquid, steam and gas medium from -200 to 1600℃, and transform thermocouple’s or thermal resistance’s signal to 4~20mA standard signal, simultaneously has real-time indication function on the spot. UTB9 integrated 4-20mA temperature transmitter has LCD or LED display.
Features :-
◆Range: -200 ~1600℃;
◆High accuracy, anti-interference, good long-term stability;
◆Integrated structure, can display its real-time measuring value.
Application
| MEASURING | GAS OR LIQUIDS COMPATIBLE TO STAINLESS STEEL |
| Temperature Ranges | Thermocouple: E,K,S,B Thermal resistor: PT100,Cu50 |
| Insert Depth | 50mm~2000mm(as customer’s request) |
| Accuracy | Thermal resistor:0.5%FS(standard);thermocouple: 0.75%FS |
| Output Signal | 4~20mA |
| Long-Term Stability | <0.25%FS/year |
| Supply Voltage | 24V±10% DC |
| Load Resistance | RL(max.) =(V-12)/0.02, V:power supply of transmitter |
| Insulation Resistance | 100MΩ@50VDC |
| Ambient Temperature Range | -30~+80℃ |
| Display | LCD or LED |
| Temperature Coefficient of Zero | 0.2%FS/10℃ |
| Temperature Coefficient of Span | 0.2%FS/10℃ |
| Process Connection | G1/2 or others |
| Electrical Connection | M20×1.5 (female) |
| Material of Wetted Part | 1Cr18Ni9Ti stainless steel |
| Material of Housing | Cast Alaluminium |
| Maximum Pressure | 10MPa |
| Protection | IP65 |
