IOT Data Logger GSM GPRS wireless Datalogger

Link Copied

MOQ : 10 Piece

Business Type	Manufacturer, Exporter, Supplier
Make	CBRO
Model	M2M6100
No. of Inputs	1 nos. via RS 485
Click to view more

Product Details

Input

Flow and Totalizer via RS485 from Flow Meter

Protocol

Modbus RTU for Flow

Parameters

Flow (2 bytes), Totalizer (4 bytes)

Real Time Clock

In-built with 24 hrs format

Data logging interval

15 min.

Interface

4G modem for GPRS to send http packet to specified server

Antenna

6 dB with 2 meter cable having magnetic base

Server Static IP

Settable

Setpoint for Alarm

Settable on flow

Power Supply

24VDC / 230 VAC / Battery Powred

Dimension

200 x 150 x 120 mm approx.

Mounting

Wall mounted

Enclosure

IP 68 ABS plastic with 1 nos. cable glands

Features:

Software development and One Time Installation cost.
Email id for the customer for login purpose.
Domain name subscription charges will be Rs 5000/- per year.
Provision to add client ID, location under client ID and no. of units under the client ID. (Maximum 16 nos. of units per client ID)
Login ID and password for above client ID. (2 nos. per client)
5 nos. of email ID for daily email per client ID.
No SMS, only email alarms will be provided.

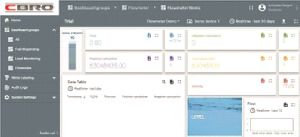

Graph viewing duration settable.
Data can be exported in CSV format, editable in MS Excel.
