| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Automatic Grade | Automatic |
| Application | Industrial |

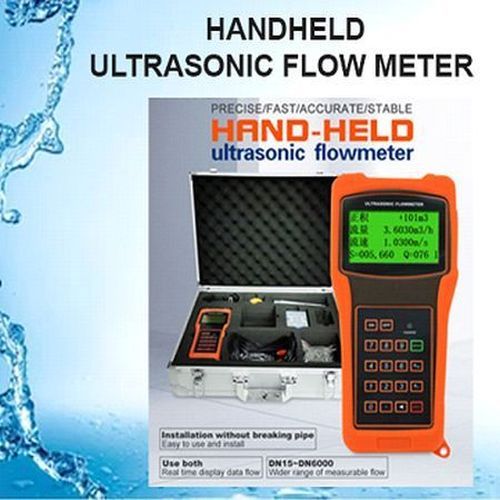

CBRO UFM250H portable clamp-on Ultrasonic Flowmeter is one of the most powerful Flowmeters available for liquid measurement. The utilisation of our ultrasonic signal processing, transit-time measurement and signal quality tracking technologies allow the Flowmeter to measure liquid flow rate from outside of a pipe reliably and accurately.
The Flowmeter is carefully designed, so that it is very compact and easy to use. A user can use hand to hold as well as to operate the Flowmeter main unit. The user-interface is self-explanatory and very easy to follow. Besides, the unique clamp-on fixture design makes the installation very simple and no special skills or tools required. Due to the non-intrusive nature of the clamp-on technique, there is no pressure drop, no moving parts, no leaks and no contamination.
Salient Features:
- Cost effective and versatile
- High accuracy 1.0% reading
- Non invasive, no moving parts, no pressure drop, no maintenance
- Easy and economical installation, no pipe cutting
- Wide measurement range 0 ~ 12m/s
- Wide pipe size range (DN 15 ~ 4570mm)
- Suitable for all commonly used pipe materials
- Bi-directional measurement. Totaliser display for net, positive and negative flow
- Ideal for both clean and opaque liquid flow measurement
Applications:
- Chemical, petrochemical and process Industries
- Fertilizers industries
- Pharmaceutical industries
- Food and drug industries
- Sugar, beverage industries
- Paper and pulp industries
- Water and waste water management
- Dredging industries
- Mining industries
Technical Specifications
| Parameters | Specifications |
| Transmitter | |
| Make | CBRO |
| Model | UFC250H |
| Power supply | 3 AAA NiMH built-in battery (12 hours of operation) & 100-240 V AC for the charger |
| Velocity | ±12 m/sec. Bidirectional |
| Display | 4 lines, 16 characters, LCD with backlight, flow rate, velocity, totaliser |
| Units | User configurable English/Metric |
| Totaliser | FWD, NET, REV, BATCH (Gallons, ft3, barrels, lbs, m3) |
| Output | RS 232 |
| Accuracy | ±1% of reading @ rate > 0.5 m/sec. (Optional ±0.5% of reading) |
| Repeatability | 0.2% of Span |
| Protection class | IP 54 |
| Dimensions | 204x90x30 mm |
| Weight | < 0.5 kg |
| Security | Keypad lockout, access code enabled |
| Sensor | |
| Suited temp. – Std. | -40oC to 120oC |
| Suited temp. – High | -40oC to 250oC |
| Pipe sizeS Sensor M Sensor L Sensor |
15 – 80 mm 50 – 700 mm 400 – 4570 mm |
| DimensionsS Sensor M Sensor L Sensor |
45x30x30 mm 60x45x45 mm 80x70x55 mm |
| WeightS Sensor M Sensor L Sensor |
< 0.3 kg < 0.5 kg < 1.0 kg |
| Protection class | IP 65, IP 67, IP 68 |
| Cable length | 6 m std. can be extended up to 25 m |
| Flexible belts | SS belt according to pipe size |
| Portable case | Size – 463x383x103 mm |
