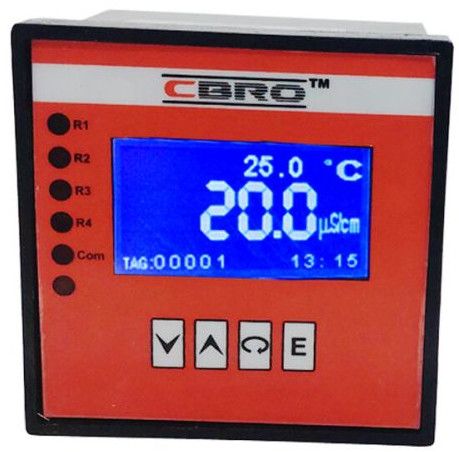

Cbro Digital TDS Meter

TDS Meter

MODEL: CI1600

TDS meter : CBRO Conductivity/TDS meter CI880 is designed to indicate five digit Conductivity/TDS value and temperature. It can accept direct Conductivity/TDS of any make Sensor and RTD Pt.100 or 4-20madc as temperature input signal. The Conductivity/TDS resolution is 0.00 to 20.00,0.0 to 2000.0,0-20000 uS and temperature resolution is 100.0 degc. It can generate two relay output on Conductivity/TDS and two relay on temperature value. It can generate isolated analog output as retransmission for conductivity/TDS and temperature input. It also provides computer connectivity port on Modbus protocol or GPRS connectivity as an optional has facility for auto or manual temperature compensation. It is having on field calibration facility to acquire better accuracy. They are very reliable, accurate employing the latest technology. They undergo stringent tests to assure quality performance. The instrument is available in a panel mounted housing which requires a cut out of 92mm(W) x 92 mm(H) x 85 (D)mm. A variety of power supply options are available for this.

Features :-

• Graphical display with easy-to-read ,Conductivity / TDS Temperature, RTC, Tag no., Unit.
• Auto Compensation to Temperature.
• Compatible to all Conductivity/TDS Electrode.
• Force manual temperature in case of temperature sensor fail.
• Alarm for Conductivity/TDS /Temperature.

APPLICATIONS :-

• Process Industries ETP Plant
• Chemical
• Pharmaceutical
• Pulp and Paper
• Wastewater
