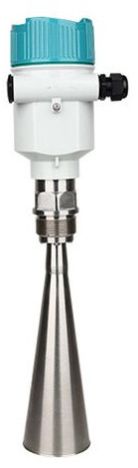

902 Radar Level Meter

902 Radar Level Meter

MODEL: RLT1600B

902 radar level meter has the advantages of low maintenance, high performance, high precision, high reliability, and long service life. Compared with ultrasonic level meter, heavy hammer and other contact instruments, the transmission of microwave signals is not affected by the atmosphere, so it can meet the harsh environment requirements of volatile gases, high temperature, high pressure, steam, vacuum and high dust in the process. This product is suitable for harsh environments such as high temperature, high pressure, vacuum, steam, high dust and volatile gas, and can continuously measure different material levels.

Advantages :-

Radar Level Meter Advantages and Disadvantages

1. Using 26GHz high-frequency transmitting frequency, the beam angle is small, the energy is concentrated, and it has stronger anti-interference ability, which greatly improves the measurement accuracy and reliability;

2. The antenna is small in size, easy to install, and has a variety of sizes to choose from, suitable for different measuring ranges;

3. The wavelength is shorter, which has a better effect on inclined solid surfaces;

4. The measurement blind area is smaller, and good results can be obtained for small tank measurement;

5. Hardly affected by corrosion and foam;

6. Almost unaffected by changes in water vapor, temperature and pressure in the atmosphere;

Application :-

Measurement of solid particles, chemical liquid tank, oil tank and process containers.

1.Radar level meter is working based on electromagnetic wave. So it could have max 70m measure range and with stable working.

2.Compared with ultrasonic level meter, radar level meter could measure different kinds of liquids, powder, dust, and many other mediums.

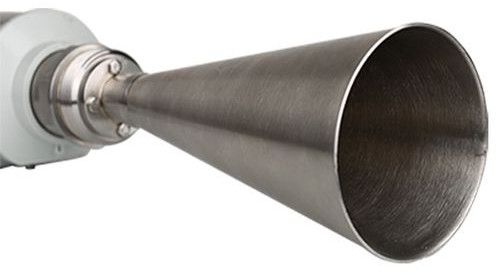

3.Radar level meter could work in harsh working condition. It won’t be affected by temperature, pressure and humidity. With PTFE horn, it even could work in corrosive condition, such as acid.

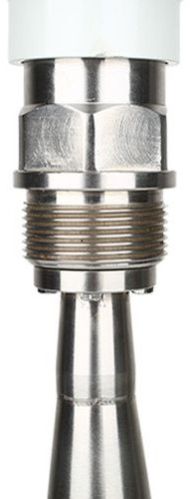

4.Customer also could choose different connection methods, such as flange, thread, bracket. The level meter’s material is SS304. SS316 material is optional.
