Level Transmitters

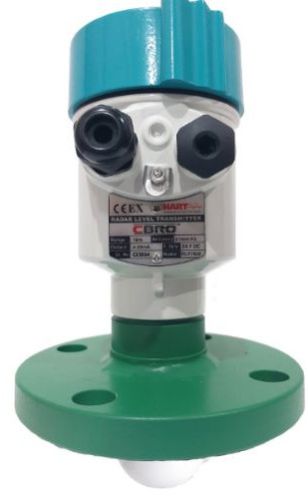

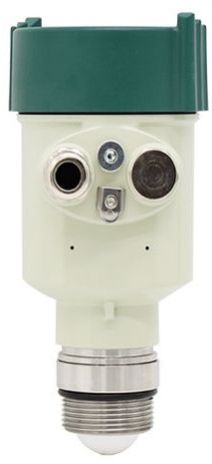

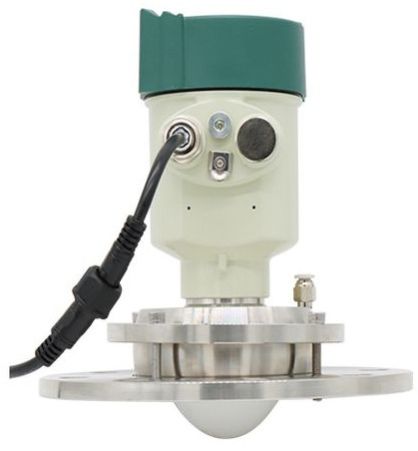

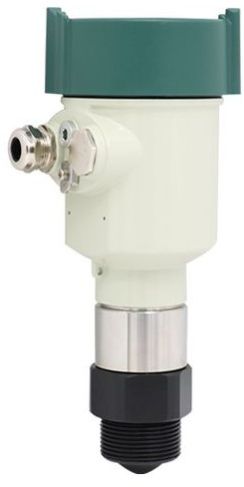

80G Radar Level Meter

MODEL: RLT1600A

80G Radar Level Meter frequency modulation wave FMCW radar product (also called millimeter wave radar), it uses a millimeter wave band with high frequency, it can detect smaller targets and achieve more precise positioning than microwave radar with higher resolution and stronger confidentiality. Therefore, it has important applications in long-distance target detection, strong smoke and dust environment, long-distance imaging, multi-spectral imaging, etc.

Advantages :-

(1)Based on self-developed millimeter-wave radio frequency chip to achieve a more compact radio frequency architecture;

(2) Higher signal-to-noise ratio, almost unaffected by level fluctuations;

(3) The measurement accuracy is millimeter-level accuracy (1mm), which can be used for metrology-level measurement;

(4) The measurement blind area is small (3cm), and the effect of measuring the liquid level of small storage tanks is better;

(5) The beam angle can reach 3°, and the energy is more focused, effectively avoiding false echo interference;

(6) High frequency signal, can effectively measure the level of medium with low dielectric constant (ε≥1.5);

(7) Strong anti-interference, almost unaffected by dust, steam, temperature and pressure changes;

Application :-

Measure the level of solid particles, chemical liquid tank, oil tank and process containers.

1.Radar level meter is working based on electromagnetic wave. So it could have max 120m measure range.

2.Compared with other type level meter, 80G radar level meter could measure different kinds of oil, chemical liquids, solid powder,and many other mediums.

3. 80G radar level meter could work in harsh working condition. It won’t be affected by temperature, pressure and humidity. With PTFE horn, it even could work in corrosive condition, such as acid liquid.

4.Customer also could choose different connection methods, such as flange, thread, bracket.

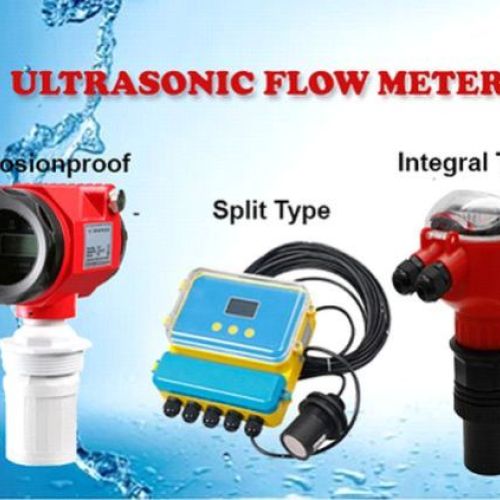

We are ultrasonic level transmitter supplier in India. The main applications of Ultrasonic Level Transmitter are for water and wastewater treatment, pumping station, collection wells, biochemical reaction tank, sedimentation tanks, electric power, mining mortar pool, coal slurry pond, and various other similar projections.

There are various models and format for every design. The nature of all ultrasonic level transmitters is same, but they may have different purposes. Being the best Ultrasonic Level Transmitter manufacturer in India.

CBRO provides following featured services for its belonging products:

• Strong, stable sensor suitable for harsh industrial situation.
• Blind spots can also be manually set.
• Shielding the probe near the interference signal.

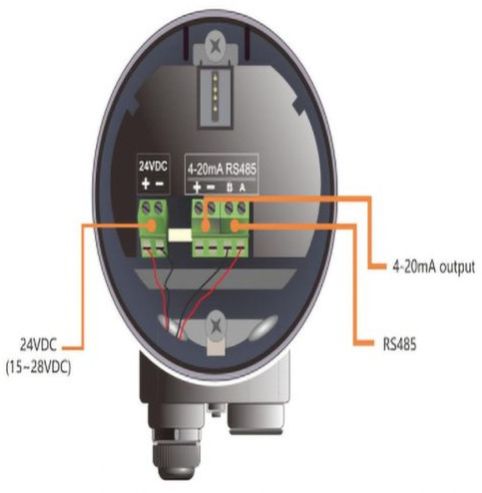

• 4 ~ 20MA current output, optional RS485 and Relays.
• The product is accurate measuring Transmitter.

CBRO is the quality Radar Level Transmitters manufacturer in India which is commonly used for rivers, lakes, shoals, Hoppers and Silos and other similar places. We manufacture& designs the product in such a way that incorporates all basic as well as advanced safety features. Known as the fastest Radar Level Transmitters supplier in India, following are the featured services that every user will entertain with our almost all products:

• Enjoy the best quality products with a certain warranty period.
• The least possible price is charged for the product. Also, we don’t compromise with the quality of the product at any cost.
• Three different books are available that are related to products. One is flipbook, other is manual and catalogue book. Download it and gather all the required information for the product.
• We are backed by industry’s best technical experts. All the products are designed by these professionals.
• Along with the durability of the product, safety and security is also considered while designing the product.

CBRO has designed the Fuel Level Transmitter to apply to every kind of fuel and similar products. It includes diesel, kerosene, and oil. The main usages of this fuel level transmitter are for measuring the fuel level. Capacitive Fuel trance are for fuel level measurement and management in fuel tanks of vehicle and stationary units.

Nothing to worry about the product quality and cost for all industry-usable products because CBRO is now available everywhere to cater the market needs. Yes, we are online as well the offline platform that provides different transmitters, switches, meters, and sensors that are used in various industries.

Fuel Level Sensor

Well-known as the best Fuel Level Transmitters manufacturer in India, we have incorporate highly innovative and work-efficient sensing probe in our fuel level transmitter. The use of this product for electrically conducting liquids like water is strictly prohibited. It may cause serious damage.

Check out the salient features of our designed fuel level transmitters series 5000:

• The response time for the product is better than 5 seconds.
• The product can handle operating temperature varying from 20 to 60 degree Celsius.
• It requires 12 to 30 VDC power supply.
• The mounting has different options in the sensing probe.
• All the internal as well as external body parts of the product are made of the best quality.
• Every product is offered at the least possible prices.

Sensing Probe:

• Mounting : Screwed – 3/4” BSP (standard) Or Flanged (optional)
• Sense : Pipe/Rod Stainless steel (SS 304)
• Grounding : Pipe, SS304
• Length : 200 (standard) up to 2000 mm
• Accuracy : 3 mm Standard, 2 mm Special Version
• Operating Temp : 70 °C for the integral unit. (Standard)

Applications:

• Fuel level sensor capacitive fuel trance is designed for all types of fuel (Diesel, Kerosene, Oil)
• Fuel level measurement in fuel tank of vehicles and stationary units

IT IS PROHIBITED TO USE for level measurement of electrically conducting liquids (for example, water).

The rapid growth is only possible if human resources become innovative and machines replace the hard work. This is the only option to save time and get the faster result. CBRO keep the similar thoughts. So, we are indulged in providing the best tech products for industry needs. CBRO is the solution for all tech-related market problems. The common usages of Capacitance Level Transmitter are for all liquids like acid, wine, milk, fruit juice, oil and other similar states of liquid.

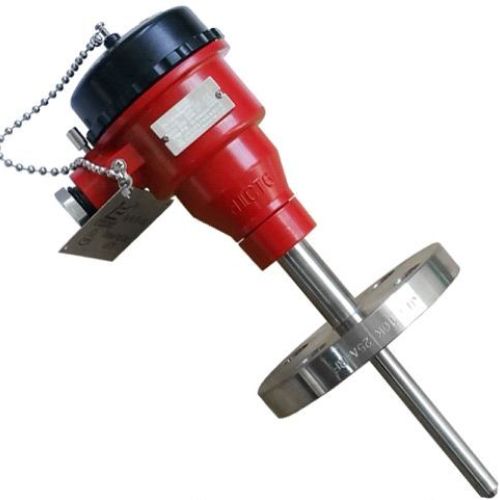

Capacitance Level Transmitter

No matter if users are unable to implement or use the products, we will help them out on just one call. Users are requested to drop their queries or problems through mails so that our technical experts can resolve them one by one.

Salient technical features of our designed Capacitance Level Transmitter:

• Stainless steel rod, Rope insulated partly or fully with PTFE is used as probe material.
• Normal temperature is minus 20 DEG C to 100 DEC C. In the special version of products, the temperature capacity can be increased up to 200 degree Celsius.
• Expected output is 4 to 20 made which is equals to 2 wire loop power.
• The product requires 12 to 30 V DC power voltages for smooth operation.
• Probe length or measuring range varies from 0.25 to 3M for Rod and from 1 to 20M for Rope.
• Process length and measuring range varies according to needs and applications. Also, mounting connection is also available as per request and application.

Liquid Applications:

• Acid
• Acetone
• Ammonia Benzine
• Feed Water
• CTC
• Diesel
• Oils
• Fruit Juice
• Milk
• Wine

Probe Specification Chart

• Conductive material: Water based solutions. Acids, Based etc – only insulated probe are suggested.
• Non-Conductivity material: Mostly petrochemical and solvents – insulated or non- insulated probes can be used.

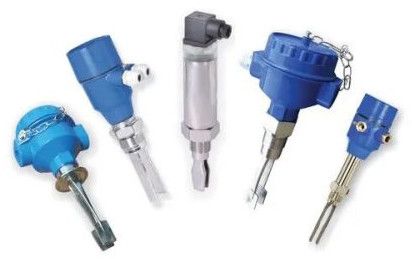

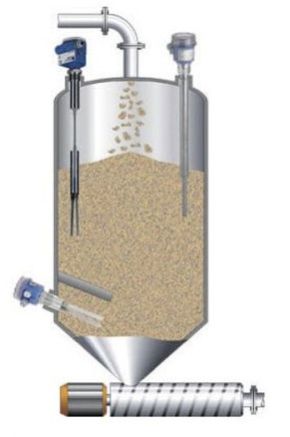

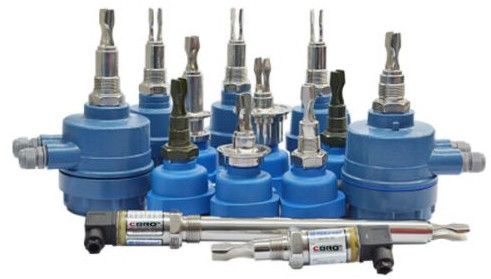

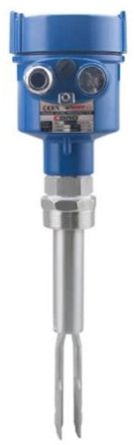

The working principle of vibrating fork level switch is based on vibrating tuning fork’s natural frequency and amplitude measurement. A specially shaped tuning fork is continuously vibrating at its natural frequency using piezo-electric elements and changes in amplitude in the presence of application media are measured. The pressure applied on diaphragm drives the vibrating fork’s tines apart from each other and return to their original position when the pressure is removed. As the material level increases and comes in contact with the vibrating fork tines, the amplitude of oscillation of vibrating fork level switch dampens or decreases as it covered with the solid application media. The change in amplitude is detected by the microprocessor leading to a switching decision. When the amplitude goes below a set threshold, vibrating fork type level switch trigger changes in output

Product Features :-

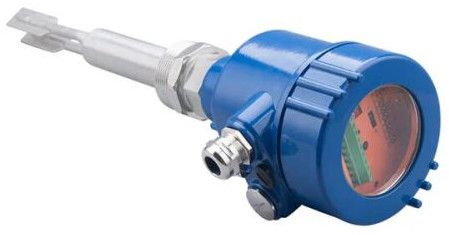

Compact vibrating fork level switch for free-flowing solids, granules and powders

• Universal Power Supply: 18 – 55V DC & 90 – 265V AC
• Application Temperature Range : up to 200° C
• Outputs: DPDT Relay, Open Collector PNP Output
• Process Connection: Threads and Flanges
• Polished & hygienic fork
• Shorter Probe Length
• Fast Switching: 0.5s & 0.8s options available
• Certifications: Flame Proof Housing IIC, IP-68 Housing

Technical Data :-

●Power supply: 24VDC (standard); 220VAC (optional)

●Ambient temperature: -20℃～70℃

●Medium temperature: -40℃～150, high temperature optional

●Media density: minimum 0.6g/cm3

●Process connection: thread, chuck or flange

●Output mode: SPDT 220VAC/24VDC 4A relay (10A optional) or RS485 bus communication mode

●Working pressure: ≤2MPa or ≤6.4Mpa

●High and low alarm: can be set to high or low alarm

●Delay: 1～30s (For longer time, please specify when ordering)

●Shell protection: IP65 or above

●Power consumption: 3W

●Electrical interface: M20*1.5 other optional

●Instrument internal circuit anti-surge voltage: 1500VAC

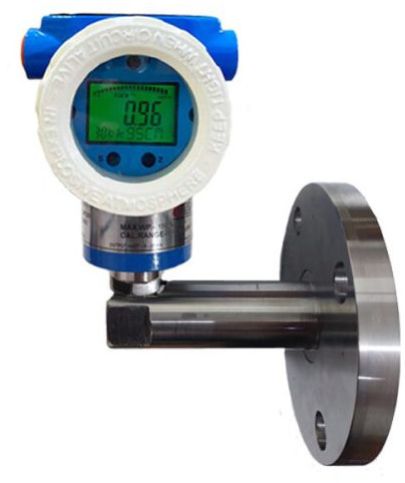

DPT Type Level Transmitter

MODEL: DPL4300

Differential Pressure (DP) Level Measurement uses pressure readings and specific gravity to output level. DP Level is a common measurement technique that is used in a wide variety of applications. Solutions include standard transmitter connections and integrated transmitters with direct or remote mount seals that can be configured in tuned, balanced, and electronic systems.

Features :-

• Ultra, ultra for flow, and classic performance
• Gauge, differential or absolute measurements
• Remote Display and Interface options
• Zero and span adjustment.

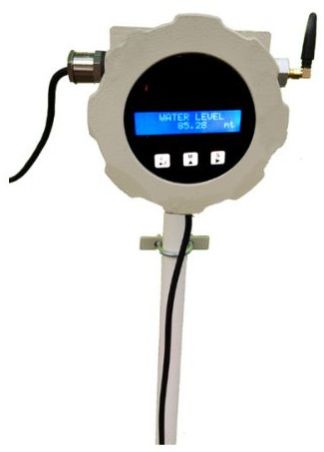

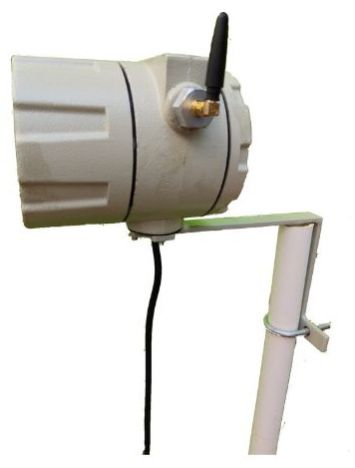

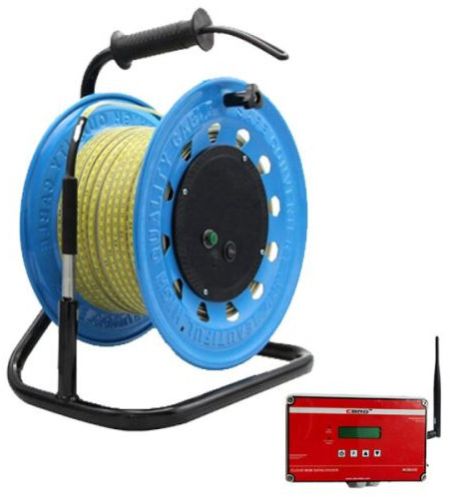

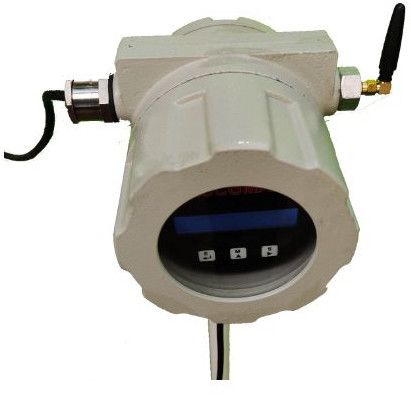

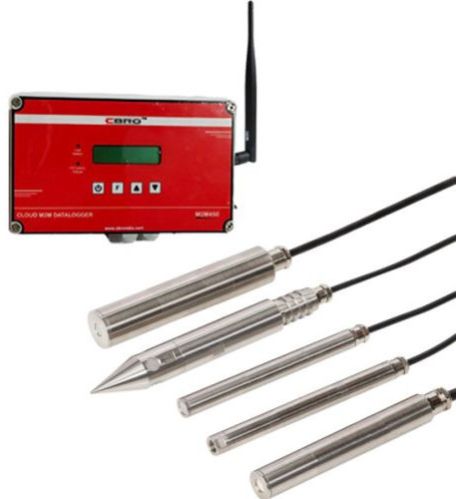

Piezometer | Digital Water Level Recorder (DWLR)

MODEL: PM2050

CBRO offers CGWA compliance Digital Water Level Recorder(DWLR) / Piezometer with telemetry or non-telemetry system. It measures borewell water levels.

Features:-

• Easy to Install
• IP 68 Sensor
• IP 66 Display Enclosure
• Inbuilt Telemetry System
• Universal Power Supply (85-300 VAC / 24 VDC)
• Cable length as per requirement
• High Accuracy
