Radar Level Meters

80G Radar Level Meter

MODEL: RLT1600A

80G Radar Level Meter frequency modulation wave FMCW radar product (also called millimeter wave radar), it uses a millimeter wave band with high frequency, it can detect smaller targets and achieve more precise positioning than microwave radar with higher resolution and stronger confidentiality. Therefore, it has important applications in long-distance target detection, strong smoke and dust environment, long-distance imaging, multi-spectral imaging, etc.

Advantages :-

(1)Based on self-developed millimeter-wave radio frequency chip to achieve a more compact radio frequency architecture;

(2) Higher signal-to-noise ratio, almost unaffected by level fluctuations;

(3) The measurement accuracy is millimeter-level accuracy (1mm), which can be used for metrology-level measurement;

(4) The measurement blind area is small (3cm), and the effect of measuring the liquid level of small storage tanks is better;

(5) The beam angle can reach 3°, and the energy is more focused, effectively avoiding false echo interference;

(6) High frequency signal, can effectively measure the level of medium with low dielectric constant (ε≥1.5);

(7) Strong anti-interference, almost unaffected by dust, steam, temperature and pressure changes;

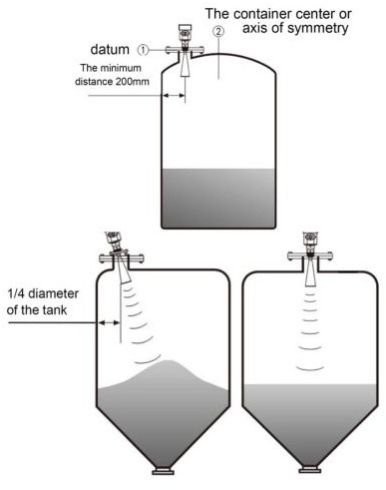

Application :-

Measure the level of solid particles, chemical liquid tank, oil tank and process containers.

1.Radar level meter is working based on electromagnetic wave. So it could have max 120m measure range.

2.Compared with other type level meter, 80G radar level meter could measure different kinds of oil, chemical liquids, solid powder,and many other mediums.

3. 80G radar level meter could work in harsh working condition. It won’t be affected by temperature, pressure and humidity. With PTFE horn, it even could work in corrosive condition, such as acid liquid.

4.Customer also could choose different connection methods, such as flange, thread, bracket.

901 Radar Level Meter

MODEL: RLT1600C

901 radar level meter is one type of high frequency level meter. This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 10 meters. The sensor material is PTFE, so it could work well in corrosive tank, such as acid or alkaline liquid. Radar Level Meter Working Principle: An extremely small 26GHz radar signal emitted in short pulse form from the antenna end of the radar level gauge. The radar pulse is reflected by the sensor environment and the surface of the object and is received by the antenna as a radar echo. The rotation period of the radar pulse from emission to reception is proportional to the distance.

Advantages :-

Radar Level Meter Advantages and Disadvantages

1. The integrated anti-corrosion outer cover structure effectively prevents the corrosive medium from contacting the probe, with excellent anti-corrosion performance, suitable for the measurement of corrosive medium;

2. It adopts advanced microprocessor and echo processing technology, which not only enhances the echo ability, but also helps to avoid interference.

3. Using 26GHz high-frequency transmitting frequency, small beam angle, concentrated energy, stronger anti-interference ability, greatly improved measurement accuracy and reliability;

4. Compared with the low-frequency radar level gauge, the measurement blind area is smaller, and good results can be small tank measurement; 5. It is almost free from corrosion and foam;

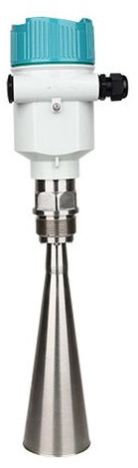

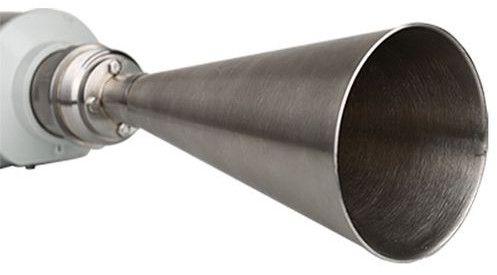

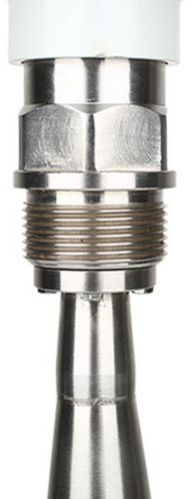

902 Radar Level Meter

MODEL: RLT1600B

902 radar level meter has the advantages of low maintenance, high performance, high precision, high reliability, and long service life. Compared with ultrasonic level meter, heavy hammer and other contact instruments, the transmission of microwave signals is not affected by the atmosphere, so it can meet the harsh environment requirements of volatile gases, high temperature, high pressure, steam, vacuum and high dust in the process. This product is suitable for harsh environments such as high temperature, high pressure, vacuum, steam, high dust and volatile gas, and can continuously measure different material levels.

Advantages :-

Radar Level Meter Advantages and Disadvantages

1. Using 26GHz high-frequency transmitting frequency, the beam angle is small, the energy is concentrated, and it has stronger anti-interference ability, which greatly improves the measurement accuracy and reliability;

2. The antenna is small in size, easy to install, and has a variety of sizes to choose from, suitable for different measuring ranges;

3. The wavelength is shorter, which has a better effect on inclined solid surfaces;

4. The measurement blind area is smaller, and good results can be obtained for small tank measurement;

5. Hardly affected by corrosion and foam;

6. Almost unaffected by changes in water vapor, temperature and pressure in the atmosphere;

Application :-

Measurement of solid particles, chemical liquid tank, oil tank and process containers.

1.Radar level meter is working based on electromagnetic wave. So it could have max 70m measure range and with stable working.

2.Compared with ultrasonic level meter, radar level meter could measure different kinds of liquids, powder, dust, and many other mediums.

3.Radar level meter could work in harsh working condition. It won’t be affected by temperature, pressure and humidity. With PTFE horn, it even could work in corrosive condition, such as acid.

4.Customer also could choose different connection methods, such as flange, thread, bracket. The level meter’s material is SS304. SS316 material is optional.
