| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Make | CBRO |
| Model | CI1600 |
| Click to view more | |
Product Details
Display
64*128 Backlit Graphical LED
Display Parameter
pH (0.00 to 14.00 pH) Temperature (0-400 DegC) RTC, Tag ID
Unit
uS/cm, uS/m,mS/cm,mS/m, ppm
Input
Direct pH electrode through BNC connector , Pt100
Analog Output
Isolated 4-20mA Retransmission (600Ω Load Capacity)
Alarm Output
4 Relay Contact (2 Relay on pH, 2 on Temperature )
Communication Output
RS485, RS232 Modbus
Accuracy
+/-0.25% of Span
Power
90 to 260 VAC, 24VDC, 12VDC
Enclosure
ABS Plastic Moulded, Weather Proof, Flame Proof
Dimension
96(w) * 96(h) * 110mm (d)
Mounting
Panel

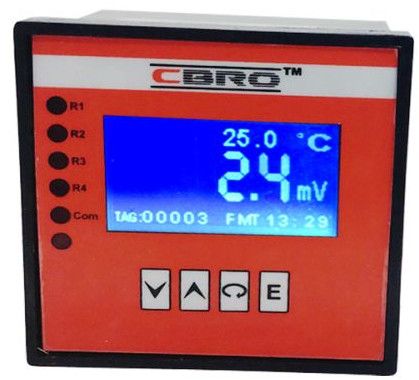

ORP Analyzer
MODEL: CI1600
ORP amalyzer : CBRO make PH/ORP Analyzer is design to measure, control and log the data of PH/ORP with real time in external device as an optional feature. It’s Having auto/manual selection facility for Temperature input Selection. It’s having Graphical LCD (64*128 Pixel Blue light )for display with inbuilt RTC, Tag No.,configuration along with PH/ORP ,Temperature value. It can generate isolated analog output 4-20mADC,Relay,Rs485 Modbus, GSM/GPRS connectivity as an optional features. All components used are industrial grade with conformal spray for anti corrosion in harsh environment. It’s available in BNC connector compatible to all variety of pH/ORP Electrode.
Features :-
- Graphical display with easy-to-read pH/ORP, Temperature, RTC, Tag no., Unit
- For better Accuracy 3 point calibration
- Auto Compensation to Temperature
- Compatible to all pH Electrode
- Force manual temperature in case of temperature sensor fail
- Alarm for pH/ORP/Temperature Compatible with GSM/GPRS System
Application:-
- Process Industries ETP Plant
- Chemical
- Pharmaceutical
- Pulp and Paper
- Wastewater
