Turbine Flow Meters
Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of Gas Turbine Flow Meter, Liquid Turbine Flow Meter, Thread Turbine Flow Meter and Turbine Flow Meter from Thane.
| Business Type | Manufacturer, Exporter, Supplier |
| Make | CBRO |
| Model No | TFM250G Series |
| Size | DN15~DN300 |
| Accuracy | ±1% (0.5% Optional ) |
| Repeatability | ±1% |
| Flow Tube | SS304 ,SS316 |
| Rotor | SS410 |
| End Connections | Threaded / Flange End |
| Ambient Conditions | Medium temperature:-20℃~+150℃; Atmospheric pressure:86Kpa~106Kpa Ambient temperature:-20℃~+60℃; Rela |
| Display | LED 4 Digit Flow rate & 8 Digit Totalizer |
| Output | Signal Output |
| Digital Communication | RS485, HART |
| Modes | Batcher, Flow Comparator, Rate Switch Mode and Pulsar |
| Power Supply | 230VAC/24V DC/3.6V Lithium Battery |
| Cable Entry | M20*1.5; 1/2"NPT |
| Explosion-proof class | Flameproof Explosion Proof CMRI IIA IIB, ( ATEX / PESO Enclosure Optional ) |
| Protection class | IP65 |

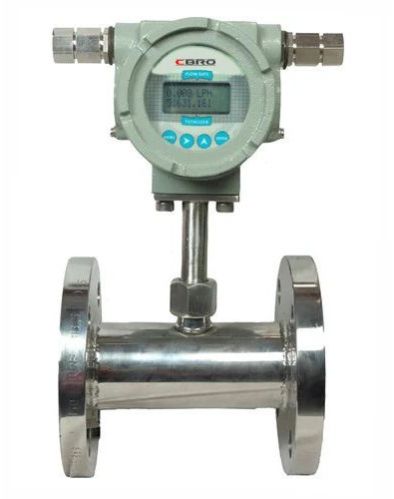

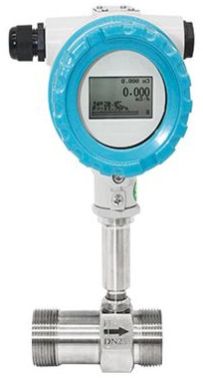

CBRO series gas turbine flow meter is a new generation of high-precision and high-reliability gas precision measuring instrument, which is based on the advanced technology of flow meters domestic and abroad. It has excellent low-pressure and high-pressure metering performance, various signal output modes and low sensitivity to fluid disturbance. It is widely used for natural gas, coal-based gas, liquefied gas and other gases application.
Advantages :-
Gas Turbine Flow Meter Advantages and Disadvantages
Gas turbine flow meter is with advanced rectification technology and dust-proof structure. It is with built-in temperature and pressure sensors which can achieve automatically compensation to make sure high accuracy. Gas turbine flow meter provides good solution for custody transfer between parties.
Compared with precession vortex flow meter, gas turbine flow meter is with low pressure loss, low initiating flow and wider measurement range. The display of gas turbine flow meter support to rotate 350°, easy to read data in different directions.
Application Areas:-
- Chemical Industries/ Pharmaceutical Industries
- Food & Sugar Industries
- Textile Industries
- Ceramic Industries/ Paper Mills
- Industrial R.O. /Water supply schemes
Various Modes :-
- Indicator & Totalizer : The meter is in flow indication mode with showing totalizer in display in order to monitor current flow.
- Batcher : Relay will energize after a pressing start button and remains energized till fixed quantity of liquid passes through the sensor. The batcher has a halt and reject batch function.
- Flow Comparator : The meter has two sensors for permeate and reject line. The meter displays both the flow rates and calculates percentage recovery also gives alarm on reducing rate of recovery.
- Rate Switch Mode : The relay has programmed to get energized whenever actual flow falls/rise the set value. Display shows “LOW/HIGHFLOW RATE”. Ideal f or flow interlock, chemical dosing.
- Pulser : To operate specific task on completion of prefix volume. Meter can configure to any metering /dosing pump.
Features :-
- Each fitting individually calibrated and marked with K factor. (ml/pulse)
- Ceramic ball bearing for superior low flow performance.
- High level (5VDC) signal can be sets up to 100ft. without transmitter.
- For best results we recommend to provide a straight run of 10 and 5D on the upstream and downstream respectively.
- Insertion type sensor also available with solvent cementable adaptors for PVC tees at extra cost.
- Fitting automatically since probe sent at correct depth and orientation.
Important Tips :-
Electro-magnetic flow meters suffer from the drawback that the flowing media or liquid must be conductive in nature, whereas such is not the case with Turbine Flow meter, which provides excellent performance even in non-conductive liquids like kerosene, petroleum, vegetable oil etc
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Make | CBRO |
| Model | TFM250 Series |
| Measuring Medium | Liquid |
| Size | DN15~DN300 |
| Accuracy | ±1% (0.5% Optional ) |
| Repeatability | ±1% |
| Flow Tube | SS304 ,SS316 |
| Rotor | SS410 |
| End Connections | Threaded / Tri-clover / Flange End |
| Ambient Conditions | Medium Temperature:-20℃~+150℃; Atmospheric Pressure:86kpa~106kpa Ambient Temperature:-20℃~+60℃; Rela |
| Display | 16 x 2 LCD Flow Rate & Totaliser |
| Signal Output | Pulse, 4-20mA |
| Digital Communication | RS485, HART |
| Modes | Batcher, Flow Comparator, Rate Switch Mode and Pulsar |
| Power Supply | 230VAC/24V DC/3.6V Lithium Battery |
| Cable Entry | M20*1.5; 1/2"NPT |
| Explosion-proof class | Flameproof Explosion Proof CMRI IIA IIB, ( ATEX / PESO Enclosure Optional ) |
| Protection class | IP65 |
| Mounting | In-line Horizontal / Vertical |

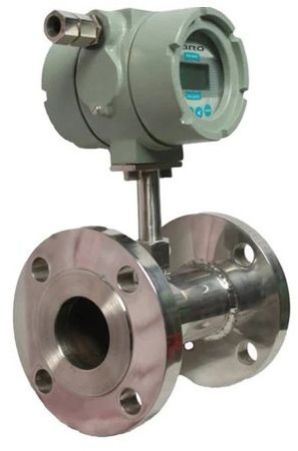

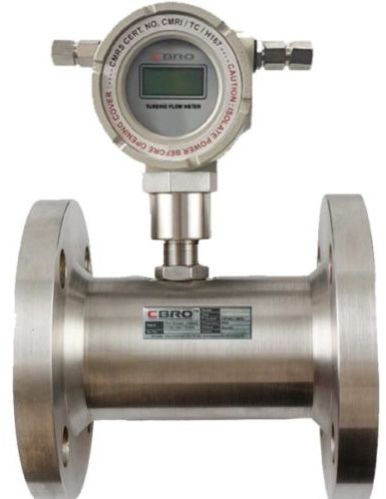

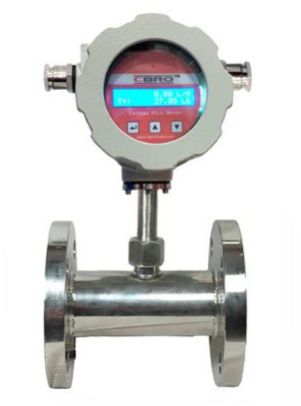

CBRO Liquid Turbine Flow Meter is internally developed and perfected by CBRO Instrument. Over the years, CBRO Liquid Turbine Flow Meter has been commissioned in many parts of the world, received praise from end-users and industrial leaders. CBRO Instrument Turbine Flow Meter offers two accuracy classes, 0.5%R and 0.2%R. Its simple structure allows a small pressure loss and virtually no maintenance requirements. Our users can select the preferred converter type depending on the commissioning environment.
Advantages :-
Liquid Turbine Flow Meter Advantages and Disadvantages
CBRO strives to provide high-quality products with economical cost.
CBRO Liquid Turbine Flow Meter applies to viscous fluids, non-conductive fluids, solvents, liquefied gases and high-pressure applications.
CBRO Instrument Liquid Turbine Flow Meter provides high accuracy of 0.2% R and a wide range of applications to non-conductive liquids, such as fuel oil, ultrapure water and gasoline. These make the turbine meter more popular compare to Electromagnetic Flow Meter in the oil industry, purifying process and distilleries.
The Flange type connection Turbine Flow Meter is known for its application in oil & gas industry. It is compatibility with high temperature/pressure pipe and high durability makes it the most popular flow instrument in oil and gas industry.
Application :-
Liquid Turbine Flow Meter Applications
CBRO Instrument Liquid Turbine Flow Meters offers both standard SS304 body and SS316 body. Because of its wide working temperature and pressure range, it is capable of measuring various mediums and commissioning into extreme working conditions.
CBRO Instrument Liquid Flow Turbine Meters are popular in the Oil & Gas industry, Chemical industry, and Water industry. The Flange connection version is compatible with High pressure/temperature commission sites. It is the most popular meter in upstream oil production and transportation, off-shore exploration, water supply, and much more.
Due to its high accuracy and fast response time, CBRO Instrument Liquid Turbine is often integrated into the Industrial Internet of Things, together with valves and pumps to achieve smart process control, for example, solvents batching, blending, storage and off-loading systems. Kindly contact our sales engineers if there are questions related to integrating CBRO Liquid Turbine Meters into your existing plant IOT.
- Measurement/Control
- Batching Application/ Flow rate Comparator (Inlet V/s Outlet)/ Dosing Application.
Application Areas :-
- Chemical Industries/ Pharmaceutical Industries
- Food & Sugar Industries
- Textile Industries
- Ceramic Industries/ Paper Mills
- Industrial R.O. /Water supply schemes
Various Modes :-
- Indicator & Totalizer : The meter is in flow indication mode with showing totalizer in display in order to monitor current flow.
- Batcher : Relay will energize after a pressing start button and remains energized till fixed quantity of liquid passes through the sensor. The batcher has a halt and reject batch function.
- Flow Comparator : The meter has two sensors for permeate and reject line. The meter displays both the flow rates and calculates percentage recovery also gives alarm on reducing rate of recovery.
- Rate Switch Mode : The relay has programmed to get energized whenever actual flow falls/rise the set value. Display shows “LOW/HIGHFLOW RATE”. Ideal f or flow interlock, chemical dosing.
- Pulser : To operate specific task on completion of prefix volume. Meter can configure to any metering /dosing pump.
Features :-
- Each fitting individually calibrated and marked with K factor. (ml/pulse)
- Ceramic ball bearing for superior low flow performance.
- High level (5VDC) signal can be sets up to 100ft. without transmitter.
- For best results we recommend to provide a straight run of 10 and 5D on the upstream and downstream respectively.
- Insertion type sensor also available with solvent cementable adaptors for PVC tees at extra cost.
- Fitting automatically since probe sent at correct depth and orientation.
Important Tips
Electro-magnetic flow meters suffer from the drawback that the flowing media or liquid must be conductive in nature, whereas such is not the case with Turbine Flow meter, which provides excellent performance even in non-conductive liquids like kerosene, petroleum, vegetable oil etc
Installation :-
Liquid Turbine Flow Meter Installation and Maintenance
Before the installation, it is crucial to communicate with our sales engineers regarding the working conditions and medium the meter designs to measure.
The installation of the Q&T Flange Type Liquid Turbine Flow Meter involves minimal effort. During installation, the users will need bolts, nuts, washers and appropriate tools for installation.
The user needs to keep in mind these three factors while carrying out the installation.
1. There should be at least ten pipe diameter lengths of straight pipe upstream of the Turbine Meter and five pipe diameter length of straight pipe length downstream of the Turbine Meter, with the same nominal diameter size.
2. Valves and Throttling devices needed to install downstream of the flow meter.
3. The arrow indicated on the meter body is the same as the actual flow.
If there are specific questions regarding the installation of the Q&T Instrument Turbine Meter, kindly contact our sales engineers for assistance.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Make | CBRO |
| Model Number | TFM250 Series |
| Measuring Medium | Liquid |
| Size | DN15~DN300 |
| Accuracy | ±1% (0.5% Optional ) |
| Repeatability | ±1% |
| Flow Tube | SS304 ,SS316 |
| Rotor | SS410 |
| End Connections | Threaded / Tri-clover / Flange End |
| Ambient Conditions | Medium Temperature:-20℃~+150℃; Atmospheric Pressure:86kpa~106kpa Ambient Temperature:-20℃~+60℃; Rela |
| Display | 16 x 2 LCD Flow Rate & Totaliser |
| Signal Output | Pulse, 4-20mA |
| Digital Communication | RS485, HART |
| Modes | Batcher, Flow Comparator, Rate Switch Mode and Pulsar |
| Power Supply | 230VAC/24V DC/3.6V Lithium Battery |
| Cable Entry | M20*1.5; 1/2"NPT |
| Explosion-proof class | Flameproof Explosion Proof CMRI IIA IIB, ( ATEX / PESO Enclosure Optional ) |
| Protection class | IP65 |
| Mounting | In-Line Horizontal / Vertical |

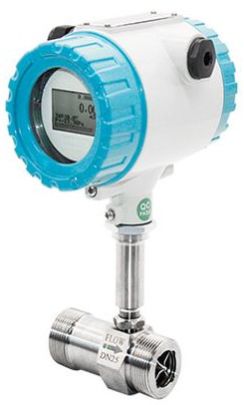

CBRO Liquid Turbine Flow Meter is internally developed and perfected by CBRO Instrument. Over the years, CBRO Liquid Turbine Flow Meter has been commissioned in many parts of the world, received praise from end-users and industrial leaders. CBRO Instrument Turbine Flow Meter offers two accuracy classes, 0.5%R and 0.2%R. Its simple structure allows a small pressure loss and virtually no maintenance requirements. The Thread Connection Turbine Flow Meter offers two types of converter options, Compact Type and Remote Type. Our users can select the preferred converter type depending on the commissioning environment.
Advantages:-

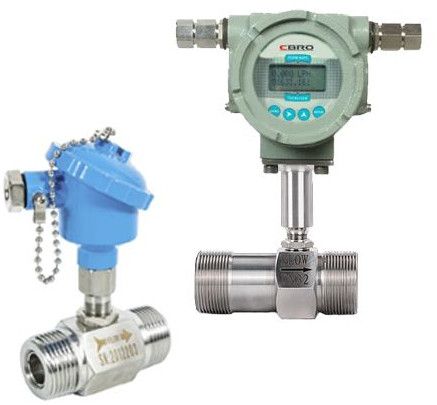

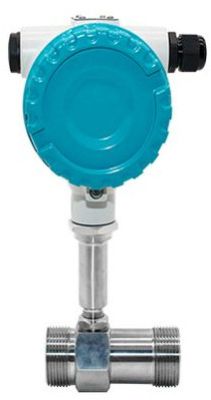

Thread Turbine Flow Meter Advantages
CBRO strives to provide high-quality products with economical cost.
CBRO Instrument Liquid Turbine Meter provides high accuracy of 0.2% R and a wide range of applications to non-conductive liquids, such as fuel oil, ultrapure water and gasoline. These make the turbine meter more popular compare to Electromagnetic Flow Meter in the oil industry, purifying process and distilleries. The CBRO Instrument meter also has an amazingly wide turndown ratio of 20:1, combined operate reliably in both high and low flow rates and produce excellent repeatability as low as 0.05%.
The Thread connection Turbine Flow Meter is known for its application to smaller pipe sizes. limited installation space, Thread connection Turbine Flow Meter is always preferred over Flanged connection and Tri-Clamp connection Turbine Meters.
Application:-
Thread Turbine Flow Meter Applications
CBRO Instrument Liquid Turbine Meters offers both standard SS304 body and SS316 body. Because of its wide working temperature and pressure range, it is capable of measuring various mediums and commissioning into extreme working conditions.
CBRO Instrument Liquid Turbine Meters are popular in the Oil & Gas industry, Chemical industry, and Water industry. The Thread connection version is designed exclusively for smaller size pipes. Our standard size range for Thread Connection Turbine meter is from DN4~DN100.
Due to its high accuracy and fast response time, CBRO Instrument Liquid Turbine is often integrated into the Industrial Internet of Things, together with valves and pumps to achieve smart process control, for example, solvents batching, blending, storage and off-loading systems. Kindly contact our sales engineers if there are questions related to integrating CBRO Liquid Turbine Meters into your existing plant IOT.
Installation :-

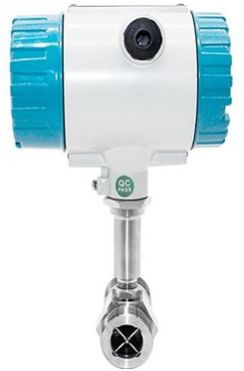

Tri-Clamp Turbine Flow Meter Installation and Maintenance
Before the installation, it is crucial to communicate with our sales engineers regarding the working conditions and medium the meter designs to measure.
The installation of the Q&T Tri-Clamp Liquid Turbine Meter involves minimal effort. Comes with the product, users will receive a pair of clamps. During installation, the users will not need additional tools for Tri-Clamp type Turbine Flow Meter.
The user needs to keep in mind these three factors while carrying out the installation.
1. There should be at least ten pipe diameter lengths of straight pipe upstream of the Turbine Meter and five pipe diameter length of straight pipe length downstream of the Turbine Meter, with the same nominal diameter size.
2. Valves and Throttling devices needed to install downstream of the flow meter.
3. The arrow indicated on the meter body is the same as the actual flow.
If there are specific questions regarding the installation of the Q&T Instrument Turbine Meter, kindly contact our sales engineers for assistance.
| Business Type | Manufacturer, Exporter, Supplier |
| Line Size | 6 NB to 250 NB |
| Measuring Range | 0.18 to 750 m3/hr of water / clear liquid 0.5 to 2200 Nm3/hr of Air/Gas at NTP |
| Display | 4 Digit LED for flow rate & 8 Digit LED for totaliser |
| Transmitter Electronics | Integral / Remote |
| Accuracy | +1- 1% F.S. (0.5% Optional) |
| Linearity | +/-0.5% |
| Repeatability | +/-0.2% |
| Turn down ratio | 10 : 1 to 100 : 1 |
| Density / Sp. Gravity | Up to 2.95 |
| Viscousity | Up to 100 cp |
| Process Temperature | 0-80 Deg C (Special design for high temerature available) |
| Process Pressure | 0-20 Kg/cm2 (Special design for high pressure available) |
| Material of construction | Bearings Tungsten Carbide Sleeve / Rotor ½ SS 410 |
| Power Supply | 24 V DC, External / Battery Powered / Solar Powered |
| Power Consumption | < 1 VA |
| Response Time | < 100 m Sec |
| Temperature Coefficient | +/-0.01 % per 0C |
| Transmitter Enclosure | Flame-proof, IP-65, IIA, IIB CMRI certified |
| Mounting | Flush of Panel |
| Communication | RS485 Modbus / GPRS / Wifi |
| Series | TFM250 |

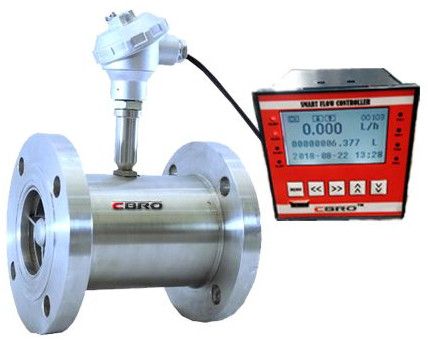

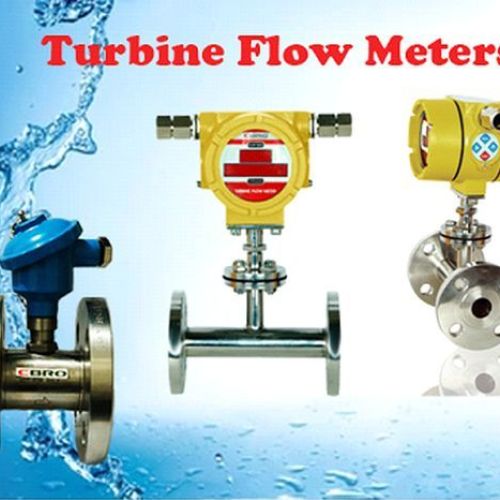

CBRO make TFM250 series Turbine Flow Meter are designed for the volumetric measurements of liquids & gases. The meters are rugged, reliable & precise instruments suitable for all industrial corrosive & Non – Corrosive Chemicals, Fuels, and Oil & Gases etc. The basic meter consists of a freely suspended bladed rotor positioned axially in the flow stream with the flowing fluid pushing against the blades. The rotational speed of the turbine is proportional to the velocity of the fluid & hence truly represents the volume of the fluid flowing through meter. The rotation of turbine rotor generates electrical pulses in the pick off attached to flow meter housing. The output pulses are amplified & converted to measure flow rate & integration. Turbine sensor with four/six digit batch controller with ICO Relay output contact offered to transfer. Preset qty. Of liquid from main storage tank with automatic flow shut off. We are a credible Manufacturer, Exporter and Supplier of Turbine Flow Meter in India.
Applications:
- Water
- Diesel
- Petrol
- Vegetable Oil
- Hydraulic Oil
- Chemical (S.S. With Teflon coating)
- Milk plant.
- Air
- Gases
