Temperature Transmitters
Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of 4-20mA Temperature Transmitter, Digital Temperature Gauge and Pt100 Temperature Transmitter from Thane.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Make | CBRO |
| Model | DTT200S |
| Measuring | Gas or Liquids Compatible to stainless Steel |
| Temperature Ranges | Thermocouple: E,K,S,B Thermal resistor: PT100,Cu50 |
| Insert Depth | 50mm~2000mm(as customer’s request) |
| Accuracy | Thermal resistor:0.5%FS(standard);thermocouple: 0.75%FS |
| Output Signal | 4~20mA |
| Long-Term Stability | <0.25%FS/year |
| Supply Voltage | 24V±10% DC |
| Load Resistance | RL(max.) =(V-12)/0.02, V:power supply of transmitter |
| Insulation Resistance | 100MΩ@50VDC |
| Ambient Temperature Range | -30~+80℃ |
| Display | LCD or LED |
| Temperature Coefficient of Zero | 0.2%FS/10℃ |
| Temperature Coefficient of Span | 0.2%FS/10℃ |
| Process Connection | G1/2 or others |
| Electrical Connection | M20×1.5 (female) |
| Maximum Pressure | 10MPa |
| Protection | IP65 |

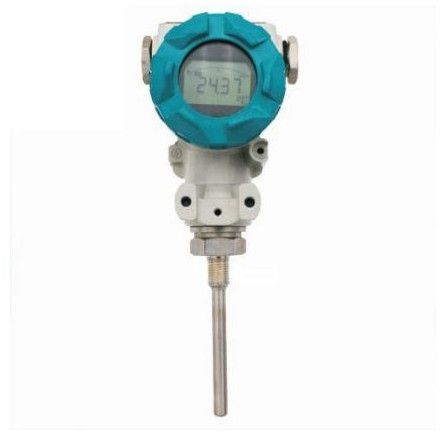

4-20mA Temperature Transmitter
MODEL: DTT200S
DTT200S integrated 4-20mA temperature transmitter thermocouple or thermal resistor as temperature sensitive element, it can measure temperature of all kinds of liquid, steam and gas medium from -200 to 1600℃, and transform thermocouple’s or thermal resistance’s signal to 4~20mA standard signal, simultaneously has real-time indication function on the spot. UTB9 integrated 4-20mA temperature transmitter has LCD or LED display.
Features :-
◆Range: -200 ~1600℃;
◆High accuracy, anti-interference, good long-term stability;
◆Integrated structure, can display its real-time measuring value.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Make | CBRO |
| Model | DTG880 |
| Measuring | Gas or Liquids Compatible to stainless Steel |
| Temperature Ranges | -200~+500℃ |
| Temperature Sensor Type | Pt100 |
| Accuracy | 0.5%FS |
| LCD Display | 4-digit |
| Display Range | -1999~9999 |
| Long-Term Stability | <0.1%FS/year |
| Battery Power Supply | 3.6V Battery |
| Ambient Temperature Range | -20~+70℃ |
| Display Unit | ℃, F,K,Ra,Re |
| Sampling Speed | 1time/sec. |
| Process Connection | G1/2 or others |
| Housing Material | 304SS |
| Material of Wetted Part | 304 SS |
| Insert Stem Diameter | 8mm(standard) |

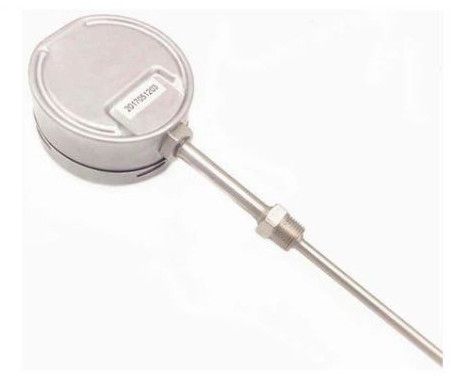

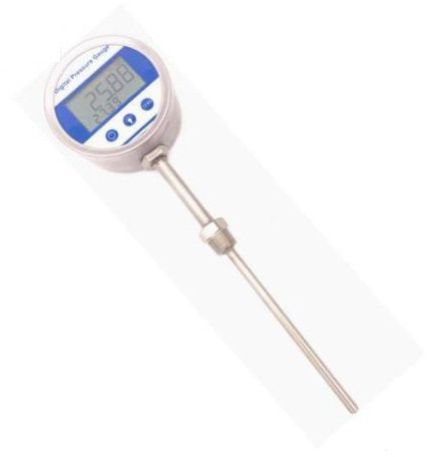

Digital Temperature Gauge
MODEL: DTG880
1. Big LCD screen display, dial 100mm, high resolution;
2. Temperature percentage dynamic demonstration (progress strip demonstration);
3. 1~15min automatic turn-off function;
4. 5 selectable engineering units:℃, F,K,Ra,Re;
5. Micro power loss function, above 2 years in the electricity saving patt;
6. Back light design, can see the reading easily in the dark.
7. keep peak value function, can record the max temperature reading during process sampling speed: 1time/ sec.
Description :-
DTG880 digital temperature gauge is designed with whole electronic structure, it uses 3.6V high performance lithium battery as power supply. The display of DTG880 is 5-digit LCD, with high resolution and no reading error. With Pt100 resistor as sensing element, DTG880 can measure and display the medium temperature precisely. The installation of DTG880 is very easy and simple.
DTG880 digital temperature gauge is widely used in such industries as water and electricity, chemical, and machinery, for the measurement and demonstration of fluid medium’s temperature.
Features :-
◆big LCD screen display, dial 100mm, high resolution;
◆Temperature percentage dynamic demonstration (progress strip demonstration);
◆1~15min automatic turn-off function;
◆5 selectable engineering units:℃, F,K,Ra,Re;
◆Micro power loss function, can work above 2 years in the electricity saving patt;
◆back light design, can see the reading easily in the dark.
◆keep peak value function, can record the max temperature reading during process sampling speed: 1time/ sec.
| Business Type | Manufacturer, Exporter, Supplier |
| Make | CBRO |
| Model | DTT500 |
| Temperature Measurement Element | PT100 op Other Thermal Resistors |
| Measured Medium | Gas or Liquid Compatible to Stainless Steel |
| Measured Medium’s Temperature | -200℃ ~+500℃ |
| Insert Depth | 20~500mm can be made upon customer’s request |
| Output Signal | 4~20mA(0~5V,1~5V option) |
| Accuracy | 0.5%FS(standard) |
| Circuit Working Temperature Range | -30℃~80℃ |
| Storage Temperature Range | -40℃~100℃ |
| Temperature Limit | 120% of measured range |
| Power Supply | 10~30VDC(15~30VDC for products with indicator) |
| Long Term Stability | 0.15%FS/year |
| Load Resistance | >500Ω(24V supply) |
| Circuit Temperature Shift | <±0.2%FS/10℃ |
| Response Time | <1ms |
| Process Connection | G1/4 or others |
| Electrical Connection | Hirchsmann Connector |
| Material of Housing | Stainless Steel |

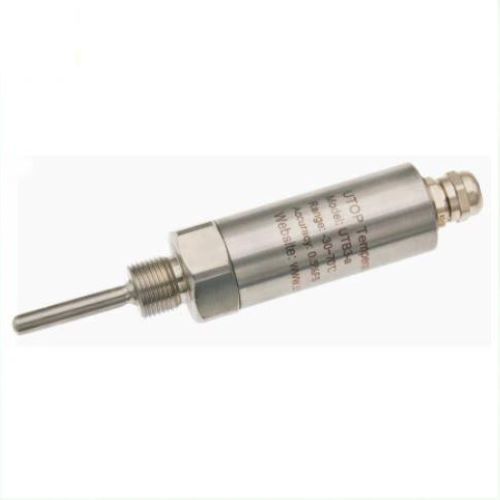

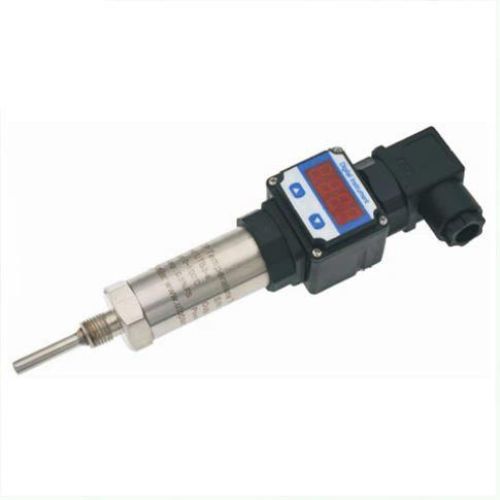

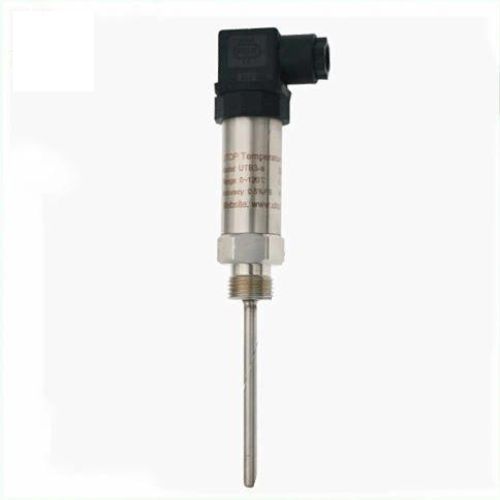

Pt100 Temperature Transmitter
MODEL: DTT500
1. Use Pt100 or other thermal resistors as sensing element.
2. High accuracy, low power consumption, wide operating ambient temperature range.
3. Integrated construction, easy installation.
4. Use full metal sealed construction, coordinate high temperature radiation trough.
Introduction
DTT500 Pt100 temperature transmitter uses Pt100 thermal resistor as sensing element. The thermal resistor transforms the measured temperature into electrical signal, after this signal is processed, it will be amplified to 4~20mA or other standard simulated signals on industry scene. UTB3 is made with integrated construction for the direct measurement of various of liquid, gas and solid’s surface temperature in the range of -200~500℃. good ability on anti-shock and withstand high temperature, also have high mechanical strength , is suitable for the application in bad working condition.
Features :-
◆Use Pt100 or other thermal resistors as sensing element.
◆High accuracy; low power consumption wide; operating ambient temperature range.
◆Integrated construction, easy installation.
◆Use full metal sealed construction, coordinate high temperature radiation trough.
