Water Analysers
Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of Cbro Digital TDS Meter, Digital Conductivity Meter, Digital PH Analyzer, Effluent Quality Monitoring System and Orp Water Analyzer from Thane.
| Business Type | Manufacturer, Exporter, Supplier |
| Power | 90 To 260 VAC, 24VDC, 12VDC |
| Application | ETP Plant Water Treatment Plant Laboratory Application |
| Country of Origin | India |
| Make | CBRO |
| Model | CI880 |
| Display | 64*128 Backlit Graphical LED |
| Unit | uS/cm, uS/m,mS/cm,mS/m, ppm |
| Input | Conductivity electrode, Pt100 |
| Analog Output | Isolated 4-20mA Retransmission (600Ω Load Capacity) |
| Alarm Output | 4 Relay Contact (2 Relay on pH, 2 on Temperature ) |
| Communication Output | RS485, RS232 Modbus |
| Accuracy | +/-0.25% of Span |
| Enclosure | ABS Plastic Moulded, Weather Proof, Flame Proof |
| Dimension | 96(w) * 96(h) * 110mm (d) |
| Mounting | Panel |
TDS Meter
MODEL: CI1600
TDS meter : CBRO Conductivity/TDS meter CI880 is designed to indicate five digit Conductivity/TDS value and temperature. It can accept direct Conductivity/TDS of any make Sensor and RTD Pt.100 or 4-20madc as temperature input signal. The Conductivity/TDS resolution is 0.00 to 20.00,0.0 to 2000.0,0-20000 uS and temperature resolution is 100.0 degc. It can generate two relay output on Conductivity/TDS and two relay on temperature value. It can generate isolated analog output as retransmission for conductivity/TDS and temperature input. It also provides computer connectivity port on Modbus protocol or GPRS connectivity as an optional has facility for auto or manual temperature compensation. It is having on field calibration facility to acquire better accuracy. They are very reliable, accurate employing the latest technology. They undergo stringent tests to assure quality performance. The instrument is available in a panel mounted housing which requires a cut out of 92mm(W) x 92 mm(H) x 85 (D)mm. A variety of power supply options are available for this.
Features :-
- Graphical display with easy-to-read ,Conductivity / TDS Temperature, RTC, Tag no., Unit.
- Auto Compensation to Temperature.
- Compatible to all Conductivity/TDS Electrode.
- Force manual temperature in case of temperature sensor fail.
- Alarm for Conductivity/TDS /Temperature.
APPLICATIONS :-
- Process Industries ETP Plant
- Chemical
- Pharmaceutical
- Pulp and Paper
- Wastewater
| Business Type | Manufacturer, Exporter, Supplier |
| Application | ETP Plant Water Treatment Plant Laboratory Application |
| Accuracy | +/-0.25% Of Span |
| Country of Origin | India |
| Model Number | CI880 |
| Make | CBRO |
| Display | 64*128 Backlit Graphical LED |
| Unit | uS/cm, uS/m,mS/cm,mS/m, ppm |
| Input | Conductivity electrode, Pt100 |
| Analog Output | Isolated 4-20mA Retransmission (600Ω Load Capacity) |
| Alarm Output | 4 Relay Contact (2 Relay on pH, 2 on Temperature ) |
| Communication Output | RS485, RS232 Modbus |
| Power | 90 to 260 VAC, 24VDC, 12VDC |
| Enclosure | ABS Plastic Moulded, Weather Proof, Flame Proof |
| Dimension | 96(w) * 96(h) * 110mm (d) |
| Mounting | Panel |
Conductivity Meter
MODEL: CI880
TDS meter : CBRO Conductivity/TDS meter CI880 is designed to indicate five digit Conductivity/TDS value and temperature. It can accept direct Conductivity/TDS of any make Sensor and RTD Pt.100 or 4-20madc as temperature input signal. The Conductivity/TDS resolution is 0.00 to 20.00,0.0 to 2000.0,0-20000 uS and temperature resolution is 100.0 degc. It can generate two relay output on Conductivity/TDS and two relay on temperature value. It can generate isolated analog output as retransmission for conductivity/TDS and temperature input. It also provides computer connectivity port on Modbus protocol or GPRS connectivity as an optional has facility for auto or manual temperature compensation. It is having on field calibration facility to acquire better accuracy. They are very reliable, accurate employing the latest technology. They undergo stringent tests to assure quality performance. The instrument is available in a panel mounted housing which requires a cut out of 92mm(W) x 92 mm(H) x 85 (D)mm. A variety of power supply options are available for this.
Features :-
- Graphical display with easy-to-read ,Conductivity / TDS Temperature, RTC, Tag no., Unit.
- Auto Compensation to Temperature.
- Compatible to all Conductivity/TDS Electrode.
- Force manual temperature in case of temperature sensor fail.
- Alarm for Conductivity/TDS /Temperature.
APPLICATIONS :-
- Process Industries ETP Plant
- Chemical
- Pharmaceutical
- Pulp and Paper
- Wastewater
| Business Type | Manufacturer, Exporter, Supplier |
| Power | 90 To 260 VAC,24VDC,12VDC |
| Model Number | CI1600 |
| Country of Origin | India |
| Make | CBRO |
| Display | 64*128 Backlit Graphical LED |
| Display Parameter | pH (0.00 to 14.00 pH) Temperature (0-400 DegC) RTC, Tag ID |
| Unit | uS/cm, uS/m,mS/cm,mS/m, ppm |
| Input | Direct pH electrode through BNC connector , Pt100 |
| Analog Output | Isolated 4-20mA Retransmission (600Ω Load Capacity) |
| Alarm Output | 4 Relay Contact (2 Relay on pH, 2 on Temperature ) |
| Communication Output | RS485, RS232 Modbus |
| Accuracy | +/-0.25% of Span |
| Enclosure | ABS Plastic Moulded, Weather Proof, Flame Proof |
| Dimension | 96(w) * 96(h) * 110mm (d) |
| Mounting | Panel |
| Extra Features | Pre-set Temperature in case of Temperature Sensor Fail Compatible to GSM / GPRS System |
PH Analyzer
MODEL: CI1600
ORP amalyzer : CBRO make PH/ORP Analyzer is design to measure, control and log the data of PH/ORP with real time in external device as an optional feature. It’s Having auto/manual selection facility for Temperature input Selection. It’s having Graphical LCD (64*128 Pixel Blue light )for display with inbuilt RTC, Tag No.,configuration along with PH/ORP ,Temperature value. It can generate isolated analog output 4-20mADC,Relay,Rs485 Modbus, GSM/GPRS connectivity as an optional features. All components used are industrial grade with conformal spray for anti corrosion in harsh environment. It’s available in BNC connector compatible to all variety of pH/ORP Electrode.
Features :-
- Graphical display with easy-to-read pH/ORP, Temperature, RTC, Tag no., Unit
- For better Accuracy 3 point calibration
- Auto Compensation to Temperature
- Compatible to all pH Electrode
- Force manual temperature in case of temperature sensor fail
- Alarm for pH/ORP/Temperature Compatible with GSM/GPRS System
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Make | CBRO |
| Model | CI-EQMS9000 |
| Measuring Principle | UV - VIS Spectrometry (Dual Beam Absorption Spectrophotometry) |
| Measurement Interval | 10 Sec (Configurable, Depending upon application) |
| Parameters to be Measures | COD, BOD, TSS, TOC |
| Measurement Range | COD (0 - 250 mg/l) BOD (0 - 250 mg/l) TSS (0 - 100 mg/l) TOC (0 - 100 mg/l) * Expandable up to 3500 |
| Optical Path | 1 mm , 3 mm or 10 mm |
| Operation Cycle | Isolated 4-20mA Retransmission (600Ω Load Capacity) |
| Alarm Output | Continuous or Batch Type |
| Cleaning | Automatic Built in Cleaning Function. User Programmable |
| Accuracy | COD / BOD / TSS : +/- 2% - 5% of F.S. |
| Response Time | Within 10 Sec. |
| Reference Standard | Distilled Water |
| Drain | Pressure Free, Atmospheric Drain Connection : 6 mm (1/4 Inch) |
| Weight | Approx. 15 KG |
| Power Supply | Voltage : 230 V AC (UPS Prefferable) Power Consumption : max 80 VA |
| Operative Condition | Temperature: 5 - 45 Degree C Humidity : 10 - 85 % RH (Or Less) |
| Installation | Wall Mount (Standard) Bench Top Support |
| Protection Class | IP54 (IP55 or IP65 Available on User Demand) |
EQMS
MODEL: CI-EQMS9000
CBRO EQMS (Effluent Quality Monitoring System) analyser based on Ultraviolet/Visible (UV/Vis) absorption, found increasingly wide application in process industries. The spectrum of interest here extends from 200 nm to 750 nm. Direct absorbance for COD, BOD, TOC, NO3, COLOR, pH, TSS and Cr bring fast and stable measurements.
This unique method allows measurements on extremely turbid or colored samples like Exceptional selectivity and no interference has never been reported after years of operation on many different applications.
The patented flow cell allows very high level of solids without clogging. The turbidity is automatically compensated by a dual-wavelength method.
Features :-
The highly optimised design completely eliminates all moving parts in contact with the water as well as consumables, makes design pollution free, economical and user friendly.
Full Spectrum UV – VIS Measurement & dual optical path design can automatically compensate the Turbidity in real time and eliminates the interference of Turbidity to the measurement, make the Analyzer more stable and reliable.
Factory pre-calibrated, local multipoint calibration possible onsite.
7″ Touch Screen Graphical Display Interface with Live Value Monitoring and status information with user friendly design.
Automatic Calibration / Cleaning / Zeroing Functions ensure the optimum performance with minimum of manual intervention.
Major Applications :-
✓ Plant treatment
✓ Water treatment
✓ Pharmaceutical applications
✓ Biological applications
✓ Fertilizer applications
✓ Boiler feed water
✓ Oxidizing applications
✓ Bilge water in ship applications
✓ Swimming pool applications
✓ Water quality monitoring
✓ Bleaching applications
✓ coloring applications
✓ and many more
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Make | CBRO |
| Model | CI1600 |
| Display | 64*128 Backlit Graphical LED |
| Display Parameter | pH (0.00 to 14.00 pH) Temperature (0-400 DegC) RTC, Tag ID |
| Unit | uS/cm, uS/m,mS/cm,mS/m, ppm |
| Input | Direct pH electrode through BNC connector , Pt100 |
| Analog Output | Isolated 4-20mA Retransmission (600Ω Load Capacity) |
| Alarm Output | 4 Relay Contact (2 Relay on pH, 2 on Temperature ) |
| Communication Output | RS485, RS232 Modbus |
| Accuracy | +/-0.25% of Span |
| Power | 90 to 260 VAC, 24VDC, 12VDC |
| Enclosure | ABS Plastic Moulded, Weather Proof, Flame Proof |
| Dimension | 96(w) * 96(h) * 110mm (d) |
| Mounting | Panel |

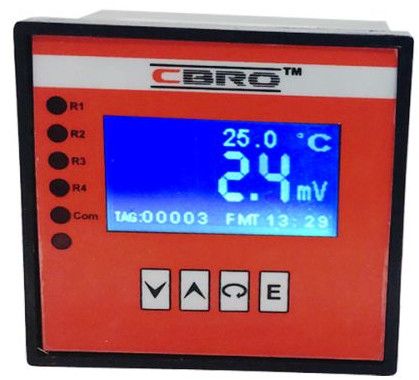

ORP Analyzer
MODEL: CI1600
ORP amalyzer : CBRO make PH/ORP Analyzer is design to measure, control and log the data of PH/ORP with real time in external device as an optional feature. It’s Having auto/manual selection facility for Temperature input Selection. It’s having Graphical LCD (64*128 Pixel Blue light )for display with inbuilt RTC, Tag No.,configuration along with PH/ORP ,Temperature value. It can generate isolated analog output 4-20mADC,Relay,Rs485 Modbus, GSM/GPRS connectivity as an optional features. All components used are industrial grade with conformal spray for anti corrosion in harsh environment. It’s available in BNC connector compatible to all variety of pH/ORP Electrode.
Features :-
- Graphical display with easy-to-read pH/ORP, Temperature, RTC, Tag no., Unit
- For better Accuracy 3 point calibration
- Auto Compensation to Temperature
- Compatible to all pH Electrode
- Force manual temperature in case of temperature sensor fail
- Alarm for pH/ORP/Temperature Compatible with GSM/GPRS System
Application:-
- Process Industries ETP Plant
- Chemical
- Pharmaceutical
- Pulp and Paper
- Wastewater
