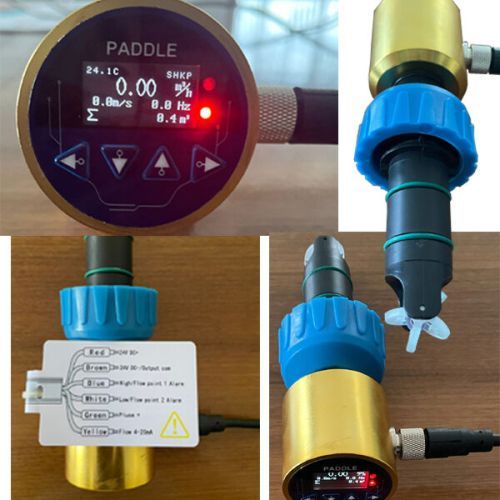

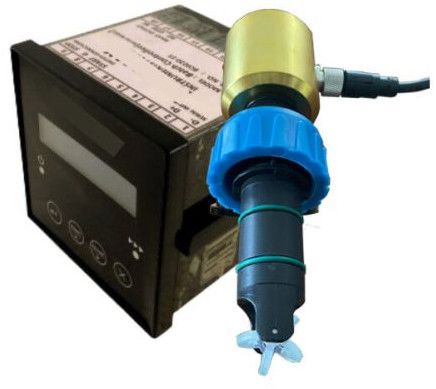

Paddle Wheel Flow Meter

Paddle Wheel Flow Meter, which is easy to operate and gives accurate and reliable measuring of flow. The flow and the revolutions of the paddle wheel are proportional to each other. Thus, by spinning the paddle wheel with the force from the flowing fluid, it becomes possible to measure the rate of this flow from the number of revolutions. A paddle wheel  flow meter is used for volumetric total flow and/or flow rate measurement since it has a relatively simple working principle. When fluid flows through the turbine meter, it impinges upon turbine blades that are free to rotate about an axis along the center line of the turbine housing. The angular (rotational) velocity of the turbine rotor is directly proportional to the fluid velocity flowing through the turbine.

Features:-

• High Accuracy in Low cost
• Robust Design
• Easy Installation
• Line Size from 25 NB
• Wide application because it has 6 different modes.
• 4-20 mA output
• RS485 Modbus

Application

• Chemical Industries/ Pharmaceutical Industries
• Food & Sugar Industries
• Textile Industries
• Ceramic Industries/ Paper Mills
• Industrial R.O. /Water supply schemes

Various Modes :-

• Indicator & Totalizer : The meter is in flow indication mode with showing totalizer in display in order to monitor current flow.
• Batcher : Relay will energize after a pressing start button and remains energized till fixed quantity of liquid passes through the sensor. The batcher has a halt and reject batch function.
• Flow Comparator : The meter has two sensors for permeate and reject line. The meter displays both the flow rates and calculates percentage recovery also gives alarm on reducing rate of recovery.
• Rate Switch Mode : The relay has programmed a way to get energize whenever actual flow falls/rise the set value. Display shows “LOW/HIGH FLOW RATE”. Ideal f or flow interlock, chemical dosing.
• Pulser : To operate specific task on completion of prefix volume. Meter can configure to any metering /dosing pump.
• Dual Totalizer: It’s a 2nd totalizer. It can be used regardless of totalizer 1 settings.
