Electromagnetic Btu Meter

Electromagnetic Btu Meter

MOQ : 10 Piece

Business Type Manufacturer, Exporter, Supplier
Make CBRO
Model BTU250
Nominal diameter DN15——DN3000mm
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Lining material
Hard Rubber / PTFE
Electrode material
SS316 / SS316L / Hasteloy C
End Connection
Flange ANSI 150 RF / Tri-clover
Accuracy
± 0.25% of F. S. w. r. t inputs
Operating Pressure
16 / 20 / 30 / 40 Bar High Pressure on Request
Operating Temperature
-25~50 Deg C
Power Supply
(A) 110/230 AC/24 V DC, 50/60 Hz (B) 4 Watts Maximum / Solar Power
Output
Isolated 4-20mA proportional to power output
Specifications :-
BTU CALCULATOR
Input
a) 4-20mA from Flow meter, b) RTD, PT100 / PT1000 (Inlet Temperature ), c) RTD, PT100 / PT1000 (Outlet Temperature )
Humidity
Below 90%, Non Condensing
Display
16 x 2 LCD, 9 or 10 Digits for Total Energy & 5 Digits for instantaneous Totaliser Power
Energy / Heat Unit
Tr , BTU/Hr , Kwh , Kcal , Kcal/Hr
Language
English, Spanish, Russian, etc.; minor languages can be customized.
Totaliser Back-Up
Backup for Total Energy provide on power failure for 21/2 year
Log View
Possible by scrolling of keys(Optional)
Communication
RS232 / 485 Modbus Protocol
Wireless Communication
GPRS / WIFI / BACnet IP Protocol for BMS (Building Management System )

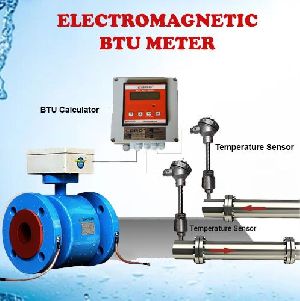

CBRO make Electromagnetic BTU meter [BTU-250] is designed to accurately measure the heat or cold energy of a water heating/cooling circuit. It is consisted of three parts, an electromagnetic flow sensor, a pair of temperature sensors and a main unit. The main unit is a powerful console which combines high accurancy flow measurement, temperature measurement and BTU Calculation. From this it calculates the thermal power and energy consumed in maintaning the temperature at given level. 9 digits are available for total energy and 4 digits are available for instantaneous power reading. The engg. unit can be easily selectable by user, either as KW & KWH or BTU / HR & BTU



Applications :

  • Chilled Water HVAC
  • Hot Water HVAC
  • Condensate And Heating Water Circuits
  • Boiler Feed Water
  • Thermal Storage, Geothermal System, Solar Hot-water System
  • District Energy Management And Billing
  • Commercial Building Tenant Billing
  • Leed / Green Building Verification,Green Credit Application
  • Energy Consulting
  • Power Plant Efficiency Monitoring
  • Facility Management In Shopping Malls, Campus, Industial Parks, Hospitals, Commercial Buildings,
  • Government Buildings, Airports And More
